Leak Detection Products

A summary of our more commonly installed Leak Detection products is detailed below. Contact us to request a quote and order.

In addition to the products mentioned, we also service and maintain all manufacturers systems. Read more about our servicing and maintenance packages.



Leak Detection Systems & Panels

1-TTDM-128-Master-Alarm-Panel-System

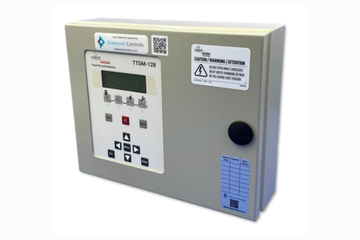

TraceTek TTDM-128 Master Alarm Panel System

A comprehensive leak detection system monitoring for water, fuel oil, chemical, and refrigerant gas leaks in several different rooms and floors at any one time. Can monitor up to 128 controllers and digitally locates leaks within 1 metre, identifying multiple or spreading leaks. Use with sensing cables or probes.

2-ECO-1-Single-Zone-Alarm-Panel-System

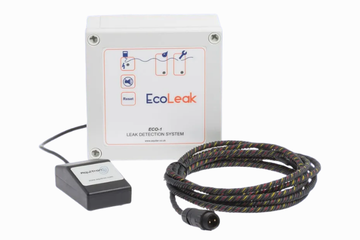

Aquilar AquiTron EcoLeak ECO-1 Single Zone Alarm Panel System

A compact design for leak monitoring of water, fuel, oil, and chemicals using sensing cables or probes. Ideal for residential and commercial applications.

4-AT-MZA-Multizone-Alarm-Panel-System

Aquilar AquiTron AT-MZA Multizone Alarm Panel System

Monitor up to 8 individual sensing zones, ideal for monitoring multiple areas and floors. For use with TraceTek sensing cables and AquiTron sensor probes. Alarm relays control individual air conditioning units, pumps and valves for leak monitoring and detection of water, gas and refrigerants.

Aquilar AquiTron AT-OSP 4 Zone Alarm Panel System

Aquilar AquiTron AT-OSP 4 Zone Alarm Panel System

A 4 zone panel for detection of fuels, oil, chemicals and water. Provides an audiable and visual alert when a leak is detected. Uses optical sensing technology. Used regularly in industrial environments.

nVent Raychem TraceTek TT-TS12-E Alarm Panel

nVent Raychem TraceTek TT-TS12-E Alarm Panel

A touch screen panel, providing a graphic user interface to manage and display information from a network of up to 250 external leak detection circuits. Interactive leak location maps and displays for use with SIMs or wireless transmitters.

Aquilar AquiTron AT-WM Water Meter BREEAM

Aquilar AquiTron AT-WM Water Meter BREEAM

A pulse water meter leak monitoring system. Use to achieve the requirements of 2018: 1.0 BREEAM UK New construction (non-domestic buildings). System monitors water flow and isolates main water pipe if volume exceeds the adjustable defined limit, limiting water and leak damage. Installation available at both site boundary and within building, programmable for varying leakage rates and time periods, automatic alarm level settings. Meets BREEAM Wat 03 requirements.

DC Solenoid Valve Relay Interface Control

DC Solenoid Valve Relay Interface Control

For use with Leak Detection Systems as a maintenance support for solenoid valve operation.

Sensors, Probes, and Cables

Aquilar AquiTron AT-Probe water leak detection probe

Aquilar AquiTron AT-Probe water leak detection probe

Suitable for multiple applications and can be floor or wall mounted. Used with TraceTeck and AquiTron alarm panels. Ideal for plant rooms, bunds, drip trays, gullies, and gutters.

TraceTek TT1000 Water Sensing Cable

TraceTek TT1000 Water Sensing Cable

Extremely resistant to corrosion and abrasion water sensing cabling. Used with TraceTek and AquiTron zonal panels. Installed at floor level

TraceTek TT5000 Fuel Sensing Cable

TraceTek TT5000 Fuel Sensing Cable

This sensing cable can detect liquid hydrocarbon fuels and does not react to water. It can be used internally or externally, and buried in the ground

TraceTek TT7000 Acid Sensing Cable

TraceTek TT7000 Acid Sensing Cable

Detects leaks and spills of sulphuric and nitric acid at any point along the cable length and can be installed internally or externally. Typically used below pipelines.

AquiTron AT-OPSEN Optical Oil Sensor

AquiTron AT-OPSEN Optical Oil Sensor

An optical sensor for use with TraceTek and AquiTron leak detection panels. The electro-optic sensor contains an infrared LED and a light receiver which when triggered, signals the alarm panel.

AquiTron AT-350 Immersion Probe

AquiTron AT-350 Immersion Probe

Capable of detecting all conductive liquids for use with TraceTek and AquiTron leak monitoring alarm systems.

Fast fuel sensor nVent Raychem TraceTek TT-FFS-250-MC-1

Fast fuel sensor nVent Raychem TraceTek TT-FFS-250-MC-1

Fast acting sensors designed to detect hydrocarbon fuel. The sensor detects a thin film of fuel floating on the surface. Fast response time. Detects light or middle-weight fuels such as gasoline, jet fuel and diesel and is also responsive to crude oil, heavier weight fuels and heating oils.

Alert Accessories

DC-SD1 Speech Dialler with Display

DC-SD1 Speech Dialler with Display

An automatic alarm accompaniment with digital display that notifies nominated personnel by phone or text message of a detected leak.

DC-SD2 Speech Dialler

DC-SD2 Speech Dialler

For use with leak detection alarm systems to provide an automatic voice or text message to alarm notifications.

Aquilar AquiTron AT-RAP Remote Alarm Panel

Aquilar AquiTron AT-RAP Remote Alarm Panel

Providing an audible and visual remote alarm in a compact design that fits within a single gang socket box up to 500m from the alarm system. Compatible with AquiTron and TraceTek alarm panels.

Gas Detection Products

A summary of our more commonly installed Gas Detection products is detailed below. Contact us to request a quote and order.

Gas Detection Systems

Medem SafeAir CM Gas Detector Panel

Medem SafeAir CM Gas Detector Panel

A gas detection panel for ventilation interlocking and gas pressure proving in a commercial kitchen. It is designed for use within commercial kitchens, to aid sites in meeting BS6173:2009 and IGEM/UP19. It can also monitor for air quality when accompanied by a carbon dioxide monitor

Medem AGDS-V Gas Detection System

Medem AGDS-V Gas Detection System

A four channel gas detection system designed for use in boiler houses, plant rooms and areas with a risk of gas escape or build up. A high alarm from a sensor will isolate any connected solenoid valve. Remote emergency stop buttons and thermal links can be monitored and a fire alarm input will close the gas valve when activated. Relays can be used to activate a beacon/sounder, a fan or signal to a BMS system.

GfG GMA 200-MW Gas Controller Panel and CC22 Transmitter

GfG GMA 200-MW Gas Controller Panel and CC22 Transmitter

Integrated audible and LED alarm system for combustible, O2, and toxic gas monitoring and alerts. Programmable relays with up to 16 transmitters per controller. CC22 transmitter measures combustible gases using the proven heat tone principle. High performance electronics and long service life sensors for highly reliable performance with temperature compensation.

Methane & Carbon Dioxide Detectors

Medem AD-MED-M Methane Gas Detector

Medem AD-MED-M Methane Gas Detector

Installed at a high level as methane gas is lighter than air and set to pre-alarm rate of 5% LEL and high alarm of 10% LEL.

Medem AD-SAF-CO2 Carbon Dioxide Detector

Medem AD-SAF-CO2 Carbon Dioxide Detector

Used to monitor the air quality within an area to ensure adequate ventilation. Alarm levels are dependent on application and set within control panels.

Refrigerant Gas Detector

Aquilar AquiTron Gas Alert ATG Alert Alarm

Aquilar AquiTron Gas Alert ATG Alert Alarm

Refrigerant gas leak detector for occupied spaces. To ensure occupant safety and help protect the Environment. Installation can aid BREEAM credits Pol 01 and Pol 02 , EN378 and F-Gas)

Trace Heating Products

A summary of our more commonly installed Trace Heating solutions is detailed below. Diamond Controls is an authorised distributor of nVent Raychem products. Contact us to request a quote and order.

Trace Heating Cabling

nVent Raychem Trace Heating Cabling for tank and storage vessel temperature maintenance

nVent Raychem Trace Heating Cabling for tank and storage vessel temperature maintenance

Used to maintain fluid temperatures within tanks and storage vessels. Typical applications include frost protection, temperature maintenance, crystallisation prevention, and condensation protection, along with speciality purposes such as heat-up and agitation processes.

nVent Raychem Frost protection trace heat cables for pipework

nVent Raychem Frost protection trace heat cables for pipework

Self-regulating heating cable, combined with thermal insulation, prevents water pipes, fire mains, sprinkler systems from freezing along with the prevention of fuel oil lines gelling.  Durable, reliable and low power consumption. Products used for pipework include FS-A-2X, FS-B-2X, FS-C-2X and FS-C10-2X.

Terminals & Thermostatic Control

Raychem ACS-30-EU-UIT2 User interface terminal

nVent Raychem ACS-30-EU-UIT2 User interface terminal

Centralised ACS-30 system user interface terminal used together with the ACS-PCM2-5 Power control panel. ACS-30 features a large LCD touch-screen display, easy programming, up to 52 power & control modules (PCMs) can be distributed throughout the site, remote temperature monitoring modules (RMM2s) and the ProtoNode multi-protocol gateway.

Trace Heating Electronic thermostat with zoned connection box control interface

Monitor and control the temperature settings for your trace heating cabling within individual zones.

De-icing Systems

nVent Raychem frost protection for roofs, gutters and downpipes

nVent Raychem frost protection for roofs, gutters and downpipes

A self-monitoring De-icing system installed to the roof to ensure any snow & ice melts and the rooftop drains and downpipes will remain functional. Product codes for this application include GM-2X and GM-2XT, we can utilise this cable with a range of controllers from EMDR-10, GM-TA and a range of SBS Control panels.

nVent Raychem snow and ice melting systems for ramps, steps and critical access areas.

nVent Raychem snow and ice melting systems for ramps, steps and critical access areas.

Works within concrete, sand or asphalt. Comes complete with smart control and monitoring unit for energy efficiency and accurate user data. Product codes include EM2-XR, EM2-CM, EM2-CW for heating cables and mat solutions used in concrete.
